컨트롤러 전원 연결하기

ESC(electric speed controller)

Afro ESC 12Amp Ultra Lite Multi-rotor Motor Speed Controller

[What does ESC mean?

Electronic Speed Controller.
An ESC is required to run the motor. Almost all HobbyKing motors are brushless as are the ESC’s.
Be sure to select an ESC that has an AMP ‘A’ rating higher than the maximum load accepted by the motor. If the motor is a 50A motor, make sure your ESC can handle 50 or more amps.
-We suggest you over-rate your ESC by 10% or more.
-Always use quality batteries which can handle the maximum load of the motor/ESC without dropping voltage.

]

어찌됐던 회로 관련해서 아래와 같다 .

yellow (signal), red(5V) and brown(ground)

베터리 –  ESC – 모터

– 컨트롤러

으흐흐 내일은 전체적으로 연결해서 확인해 볼수 있겠다..

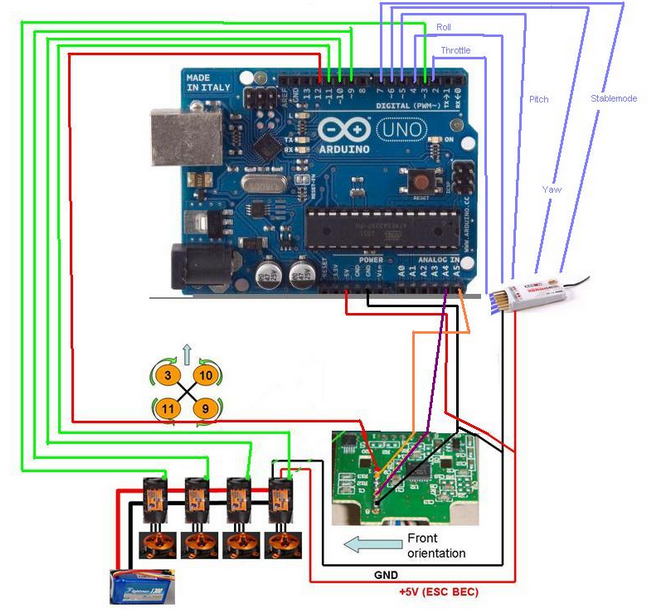

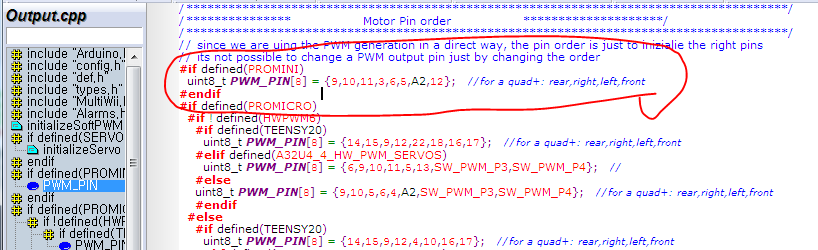

자.. 그리고 아두이노와 PWM 파형 관련해서는 아래와 같이.. ^^ 코드와 배선을…
