Raspberrypi4 USB-C type host mode setting

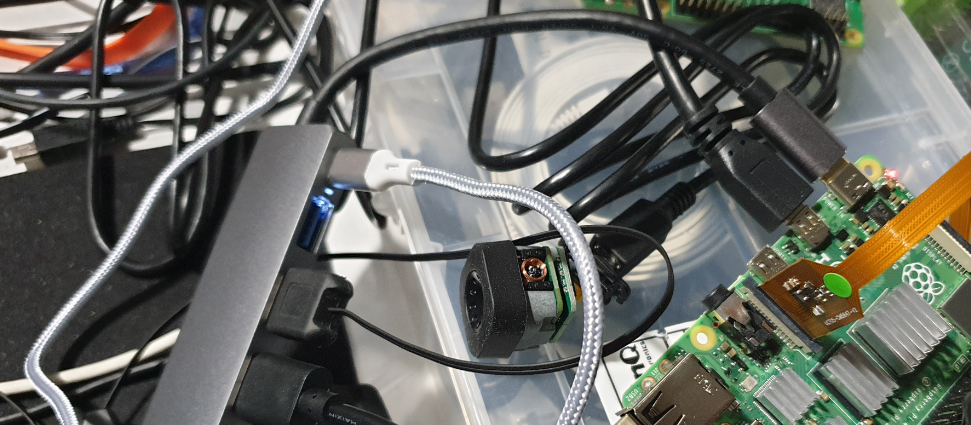

I want use USB hub on USB type C port.

The result is success. ^^

Now I can use host mode and power also can use through hub to raspberrypi.

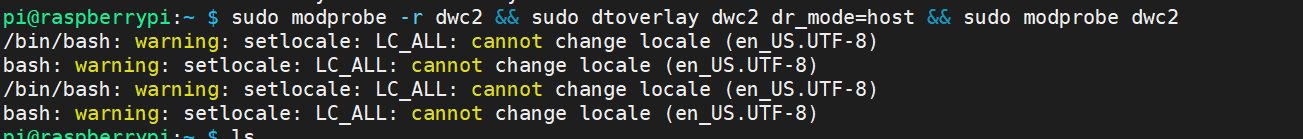

$sudo modprobe -r dwc2 && sudo dtoverlay dwc2 dr_mode=host && sudo modprobe dwc2

one more thing.

If you want setting on booting time. you can add to /boot/config.txt

dtoverlay=dwc2,dr_mode=host

good luck~~

ref : https://www.raspberrypi.org/forums/viewtopic.php?t=246348

Regardless of whether or not you have done this, you can switch into device mode in the shell as root:

Code: Select all

modprobe -r dwc2 && dtoverlay dwc2 dr_mode=peripheral && modprobe dwc2

At this point, you can load the gadget of your choice. When you are done, remove, the gadget driver, and you can switch back to host mode:

Code: Select all

modprobe -r dwc2 && dtoverlay dwc2 dr_mode=host && modprobe dwc2
