USB Logic Analyzer 구매.. ^^

어쩌다가 지인을 통해 알게된 USB Logic Analyzer
원래는 오실로 스코프 살려고 알아보다가.. 단돈 40$ 라는 가격에 매료되서.. 사버렸다..
10월 21일에 주문해서 근 20일만에 집에 왔는데.. 바빠서 못보다.. 동작확인하고 OK 사인해야해서.. 확인 해봄.

http://www.aliexpress.com/snapshot/6297400934.html

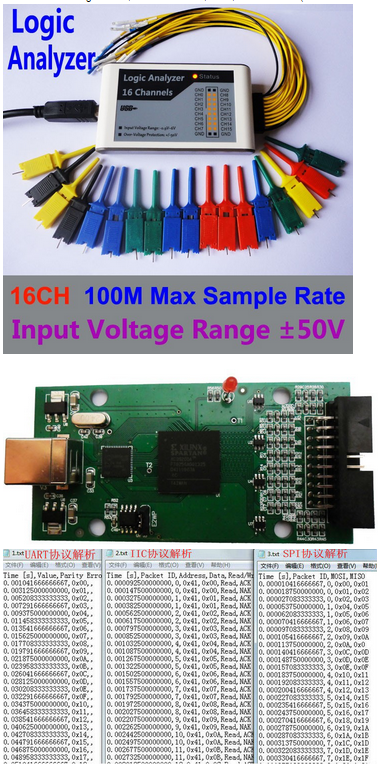

Product Description
Product Description:
Support Original software
USB Logic Analyzer 100M –3CH, 50M–6CH,32M–9CH,16M–16CH,
best quality,hign_powered,wholesale and retail,free shipping,support Win7(32&64),win8,2K,XP,Linux(32&64),mac os

Main Parameter:
1.
3CH@100M MAX Sample Rate
6CH@50M MAX Sample Rate
9CH@32M MAX Sample Rate
16CH@16M MAX Sample Rate
Sampling Rate can be set to:100M,80M,50M,32M, 25MHz. 16MHz, 12MHz, 8MHz, 4MHz, 2MHz, 1MHz, 500KHz
2.Billions of samples
can save as many as 10B samples, letting you capture even the most elusive events. No more dealing with frustratingly small sample buffers

3.16 channels
As you might have guessed from the name,lets you connect up to 16 of your most troublesome signals

4.Enhanced hardware-side buffer
has a much larger hardware-side buffer than Logic, considerably enhancing its reliability for extremely long captures at high speeds

5.1.8V logic welcome
works with 1.8V logic levels, as well as 2.0V, 2.5V, 3.3V and 5V (and the others in between).

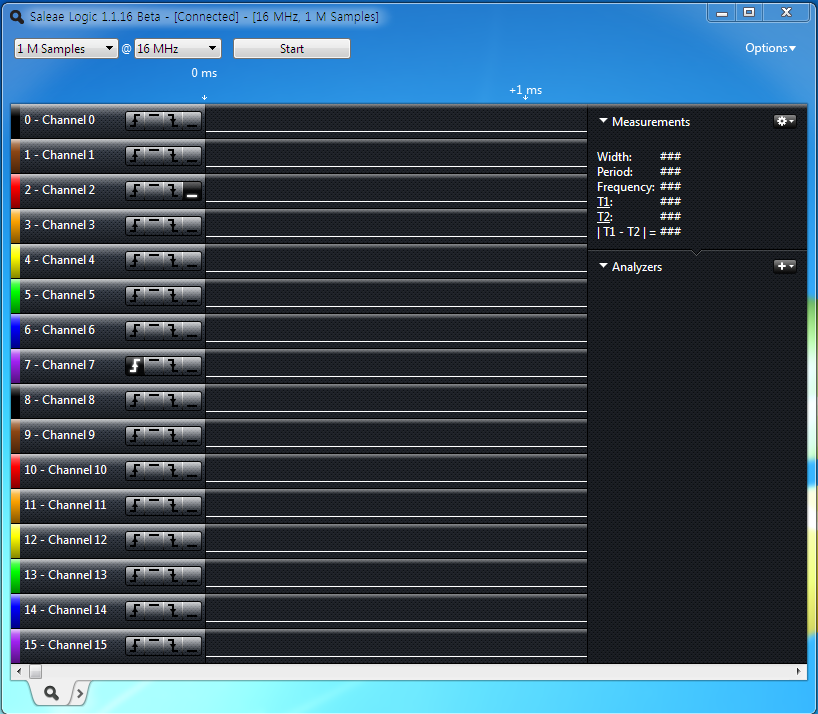

실제 PC에서 구동한 영상 (아직 측정할 디바이스가 없어서 그냥 실행만.. 연결하면 USB driver 인식하고 default 7개 체널인던게
아래 처럼16개 체널로 바뀐다.

앞으로 I2C나.. 눈에 보이지 않는것들은 이 녀석을 써서 할 생각하니 벌써부터 설레인다.. ^^
